Industrial Vertical Compressed Air Receiver Tank 2000

1 / 3

⚠ Images are for illustration. Contact us to confirm availability and exact specifications before ordering.

SKU: SKU100 · Brand: OTHER BRANDS

MANUFACTURING EQUIPMENTS ✔ In Stock

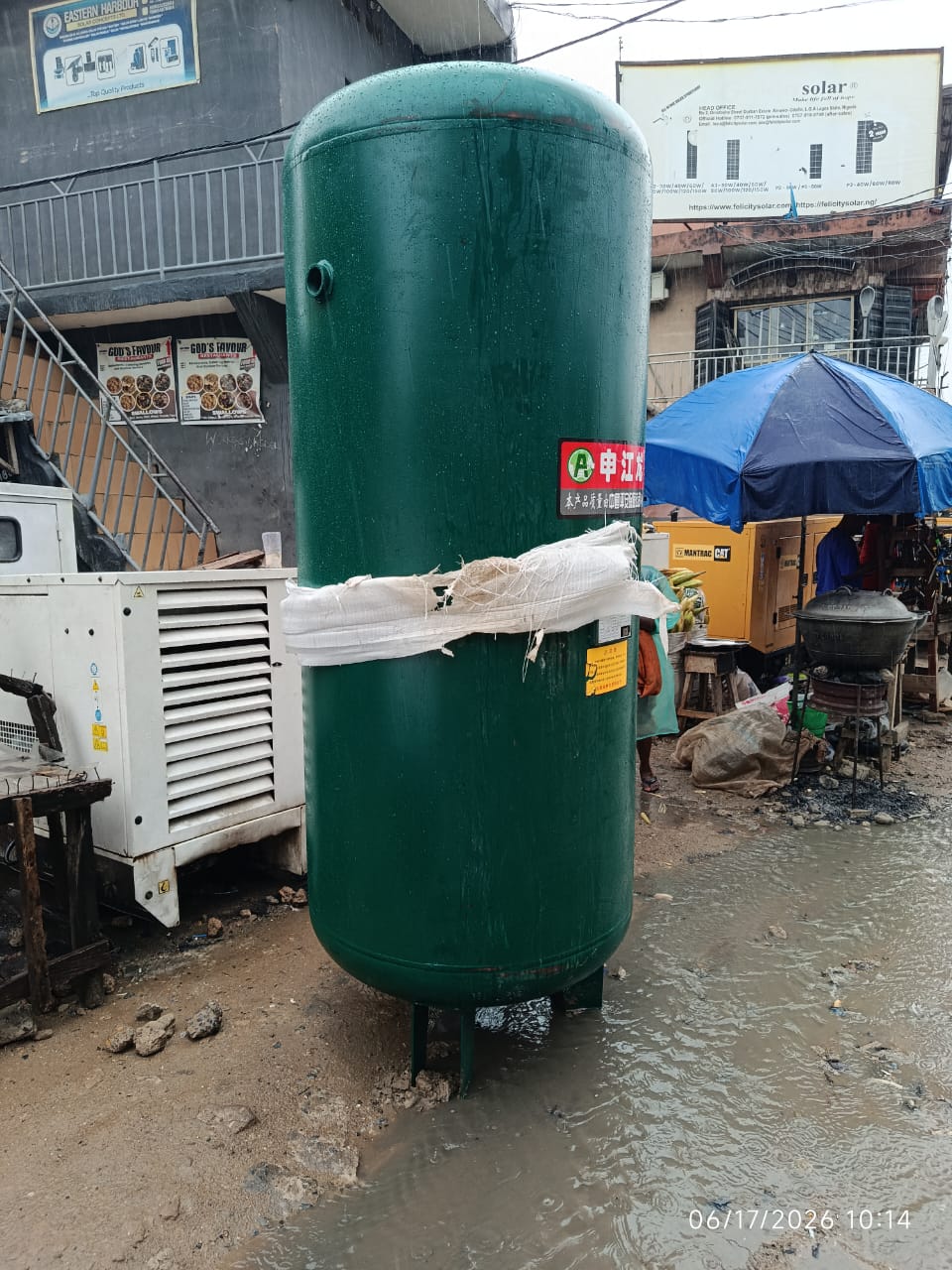

Industrial Vertical Compressed Air Receiver Tank 2000

₦3,800,000

2000 liters Industrial Vertical Compressed Air Receiver Tank. This high-capacity pressure vessel is designed to store compressed air from a large commercial piston or rotary screw compressor system, acting as an essential buffer to equalize pressure fluctuations in the supply line. Applications Pneumatic Ring Mains: Providing stable, high-volume air reserves for automotive assembly lines, manufacturing workshops, and spray booths. Heavy Sandblasting Systems: Sustaining constant blasting pressures without overworking the compressor pump cycles. Packaging & Textile Automation: Supplying uniform air distribution loops for sensitive pneumatic actuators and sorters.

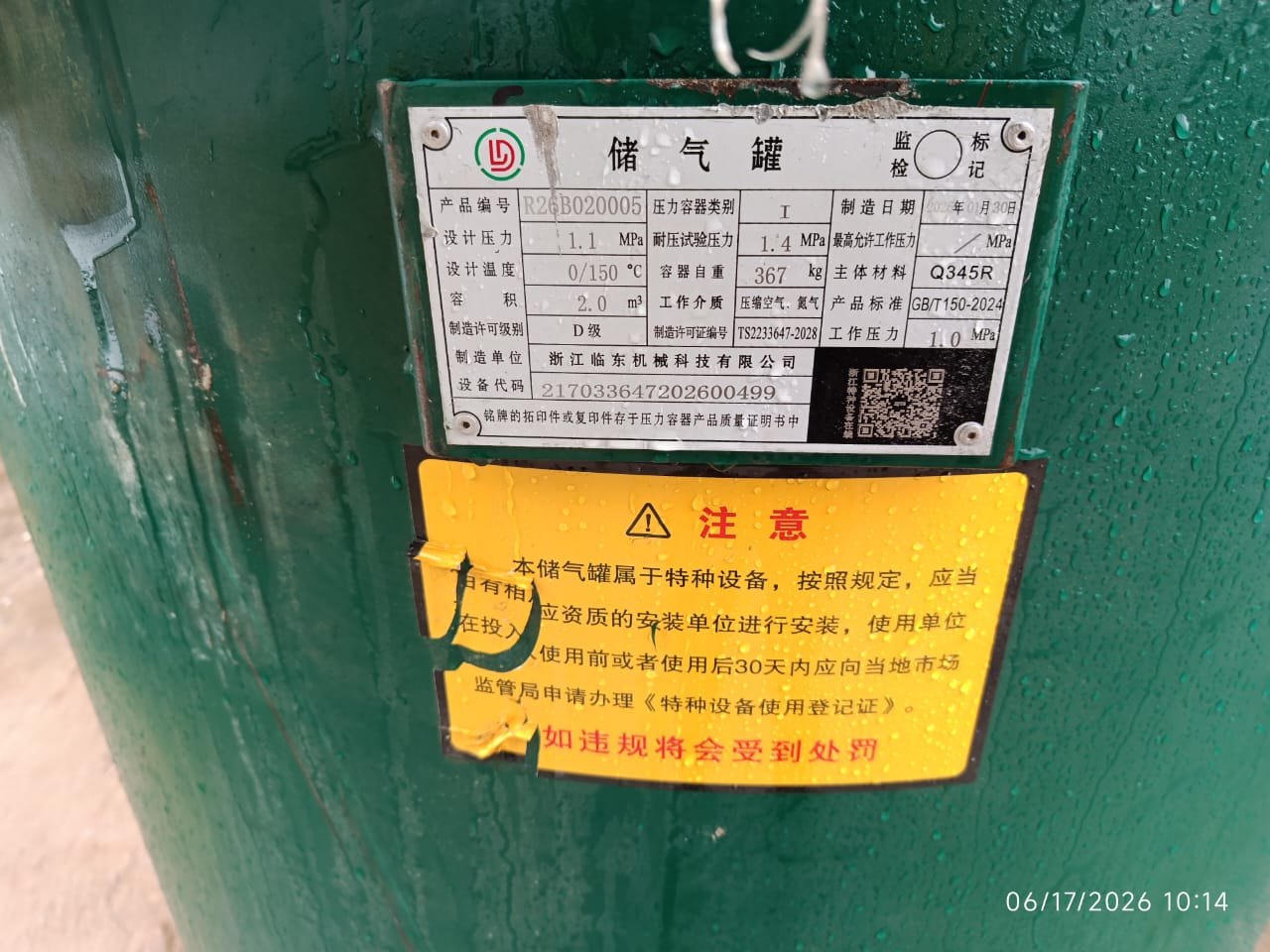

Specifications

Volume Capacity:	2.0 m³. 2,000 Liters (approx. 528 Gallons)
Working Pressure:	1.0 MPa. 10 Bar (approx. 145 PSI)
Design Pressure:	1.1 MPa, 11 Bar (approx. 160 PSI)
Hydrostatic Test Pressure:	1.4 MPa. 14 Bar (approx. 203 PSI)
Design Temperature Range:	0 to 150 °C or 32 to 302 °F
Empty Tank Weight:	367 kg Approx. 809 lbs
Main Body Material:	Q345R, Pressure vessel grade carbon steel
Supported Media:	Compressed air or Nitrogen gas
Production Standard:	GB/T150-2024
