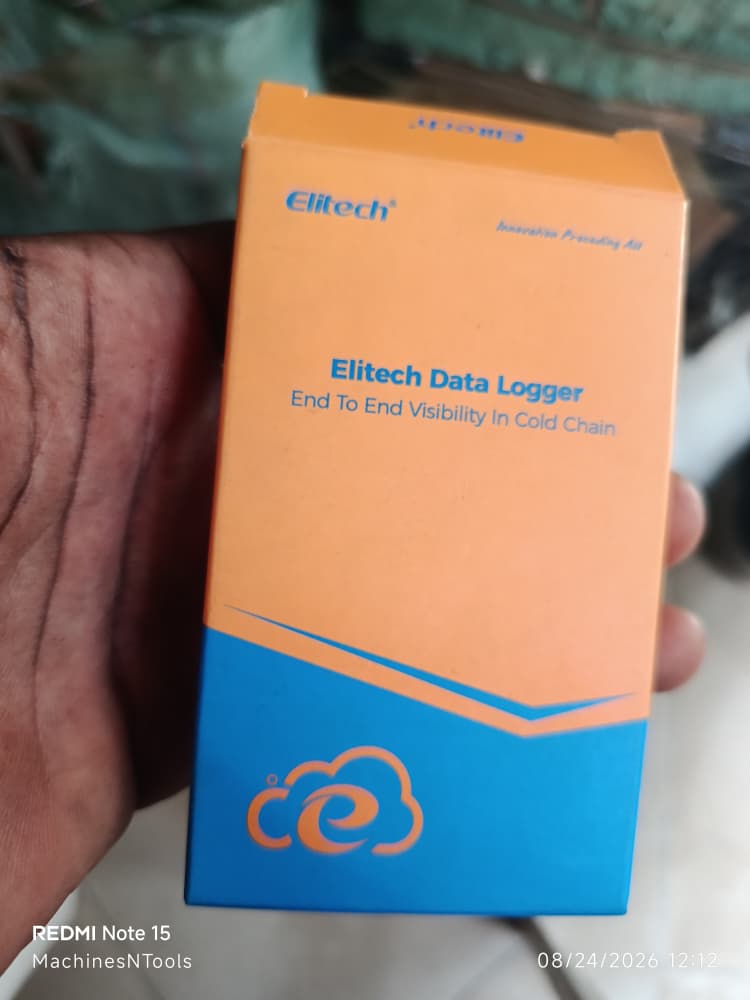

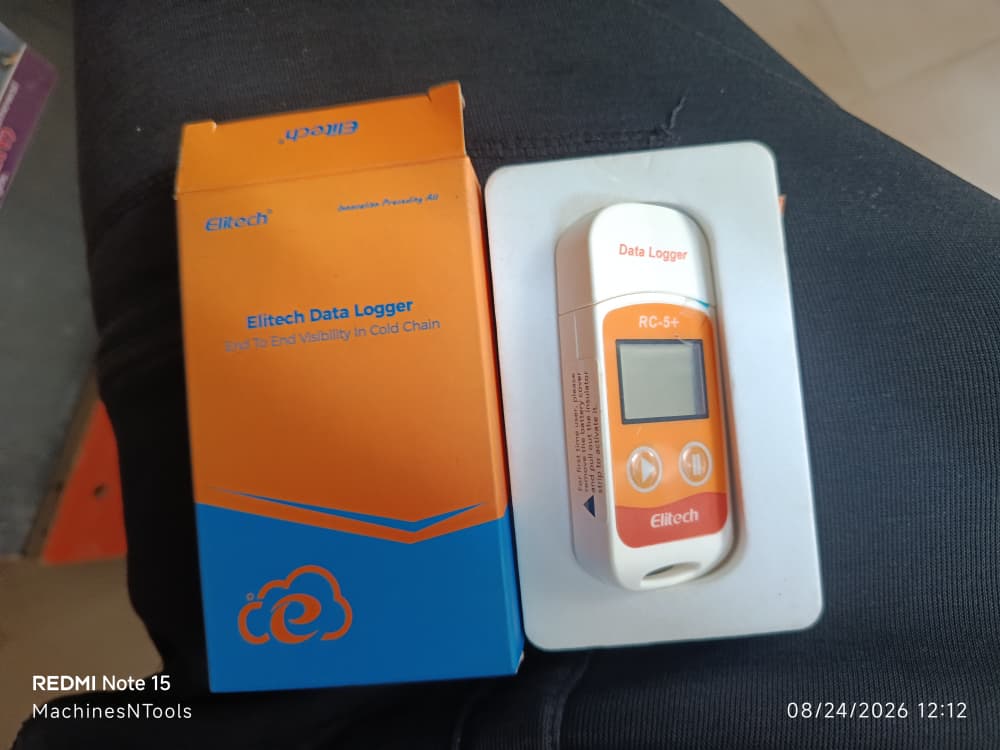

Elitech RC-5+ USB Temperature Data Logger

Elitech RC-5+ USB Temperature Data Logger. It is widely used in cold chain logistics to track temperatures for food, medicine, and laboratories. Basic Operational Steps: Unboxing Setup: Twist the circular battery cover on the back off using a coin, pull out the clear plastic battery insulator strip noticed on the protective sticker, and re-lock the cover. First Time Config (Optional): Download the free ElitechLog Software to customize settings like the tracking interval (e.g., logging every 10 minutes) or temperature threshold alarms. Start Tracking: Press and hold the Left Button (Play Symbol) for 5 seconds until a solid triangle icon (▶) locks onto the top left corner of the LCD screen. Stop Tracking: Press and hold the Right Button (Pause/Stop Symbol) for 5 seconds until the stop block icon (■) displays. Operational & Configuration Parameters; Logging Interval: User-programmable from 10 seconds up to 24 hours. Start Delay: Programmable from 0 seconds up to 6 hours. Alarm Limits: High and Low temperature threshold alarms can be customized. Alarm Type: Single event configuration or cumulative time alarm. Data Interface: Integrated standard USB 2.0 connection plug (no specialized cable needed). Report Generation: Automatically exports encrypted PDF formats directly. Optional Excel/Word outputs available using companion software. Power Source: 1x CR2032 3V lithium cell battery (user-replaceable). Battery Life: Up to 6 months (when stored and logging at 15-minute intervals at room temperature). Protection Class: IP67 waterproof and dustproof shell casing.

• Automatic PDF Generation: Plugs directly into any computer's USB port to automatically generate encrypted PDF temperature reports without needing special software.
• Storage Capacity: Holds up to 32,000 data logs before filling its memory cycle.
• Weatherproof Design: Built to an IP67 waterproof rating to protect against humidity and condensation.
• Repeat Start Functionality: Unlike standard loggers, the RC-5+ can be stopped and restarted manually without reconfiguring via a computer.
