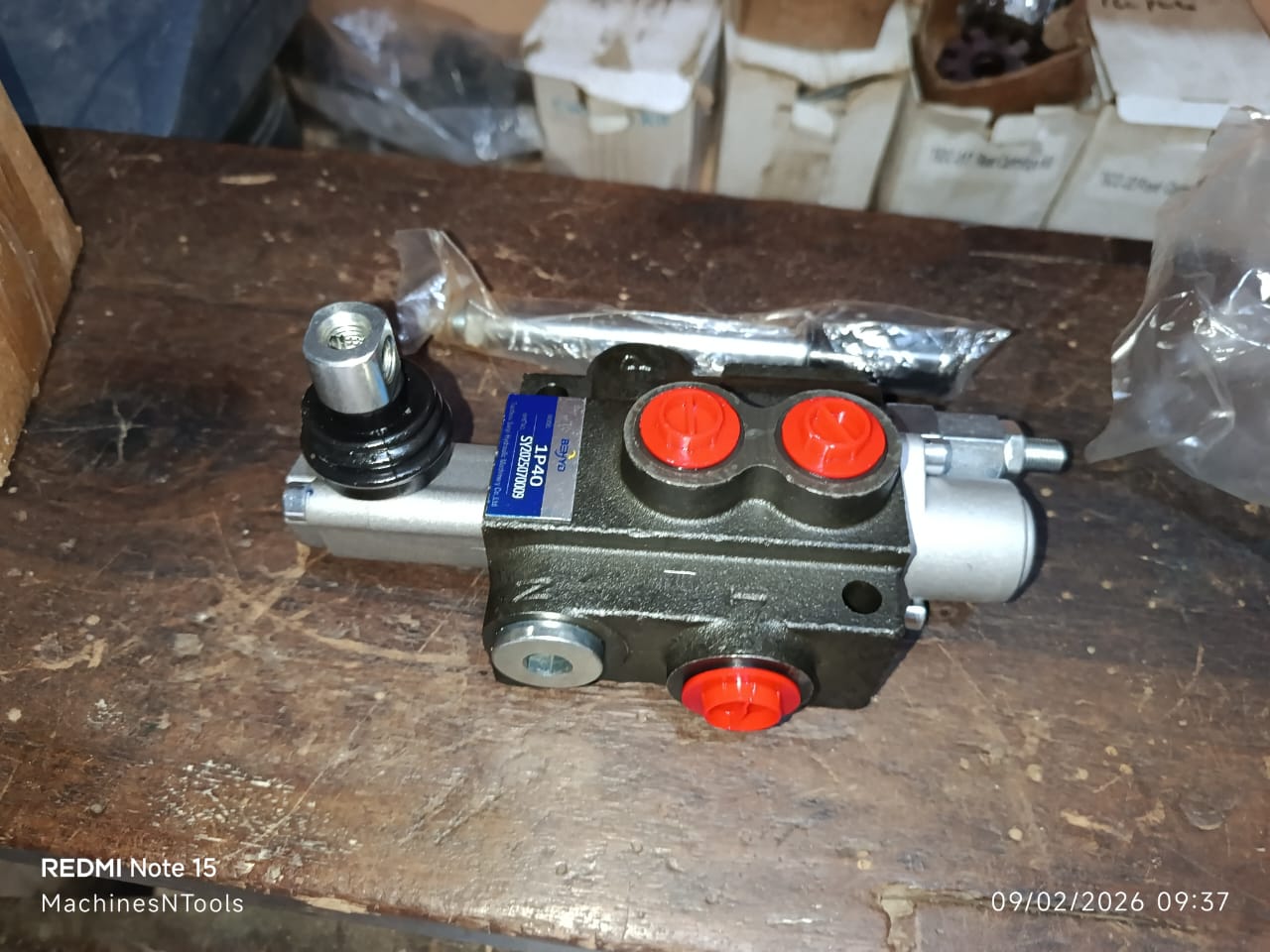

1P40 Single Spool Monoblock Hydraulic Directional Control Valve

₦380,000

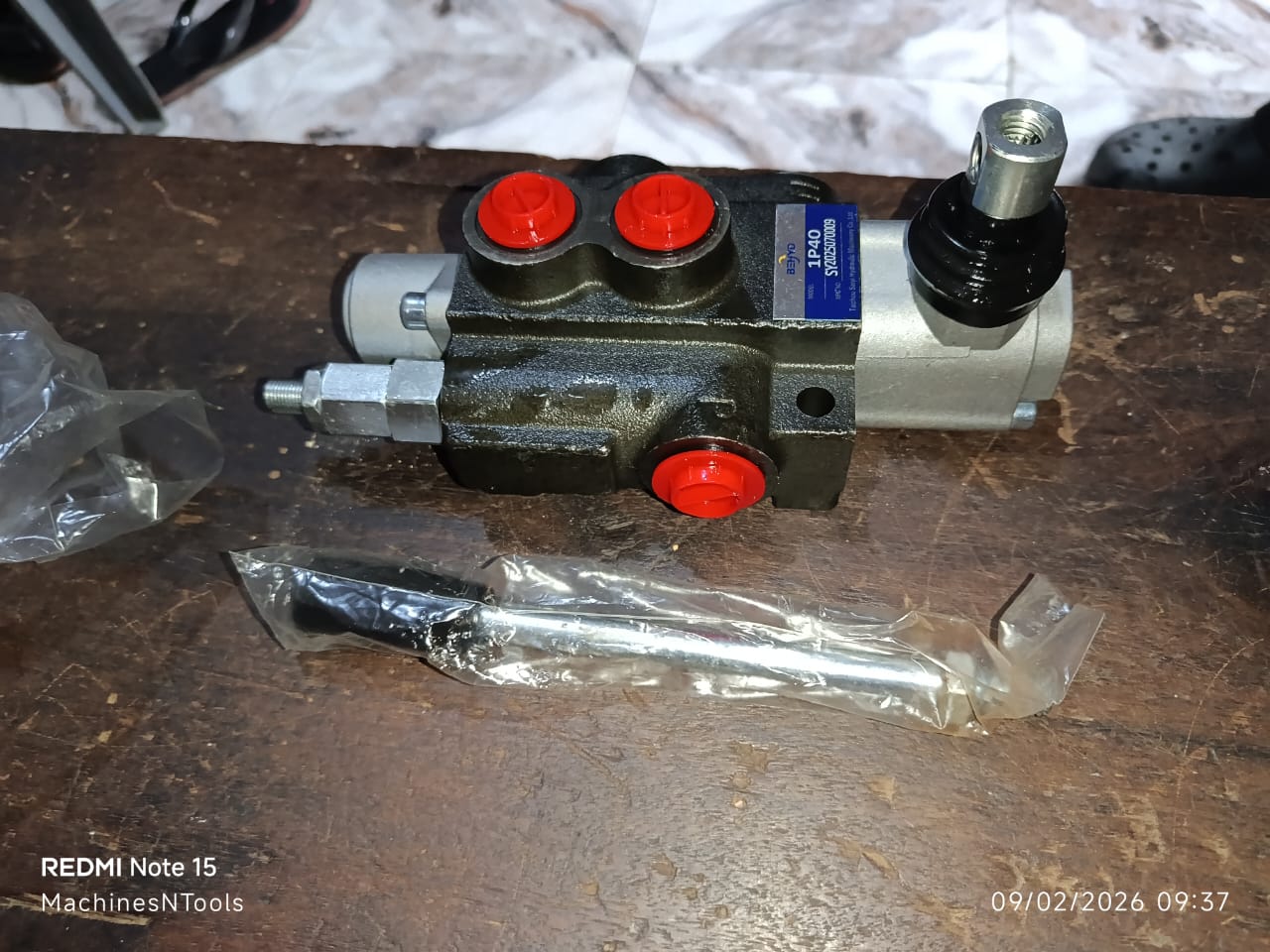

1P40 Single Spool Monoblock Hydraulic Directional Control Valve, It comes packaged with its uninstalled hand operating lever. Applications This manual fluid valve acts as a mechanical switch to divert high-pressure hydraulic fluid through physical circuit lines. It is heavily utilized in: Agricultural Equipment: Controlling small tractor attachments, pull-behind plow frames, and field sprayers. Industrial Tools: Powering hydraulic wood log splitters, lifting docks, and compact shop presses. Light Earthmovers: Operating single-axis boom cylinders on small loader buckets and micro-excavators.

Specifications

Spool Section Count:

1 Spool (Controls 1 double-acting cylinder)

Nominal Volume Flow:

11 GPM (Approx. 40 Liters/min)

Max Operating Pressure:

3600 PSI (250 Bar)

Center System Layout:

Open Center (Oil flows straight to the tank line in neutral)

Interface Ports:

Typically G 1/2" BSPP or SAE 8 O-Ring standard threads

Control Action Type:

Manual spring-return to center position

Key Features

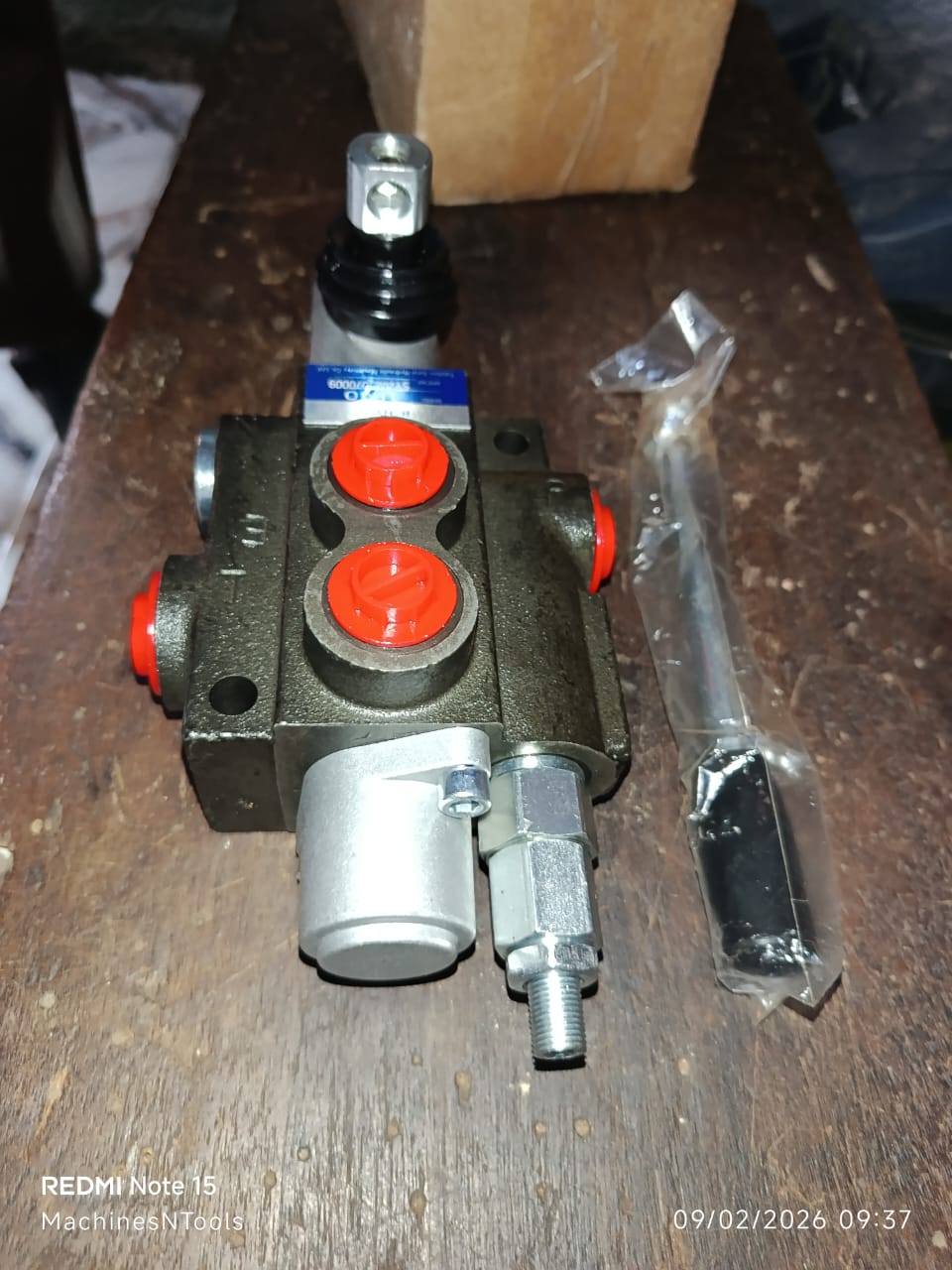

Adjustable Relief Valve: Built with a bottom hex-nut screw mechanism (visible at the bottom right) to preset system bypass pop-off limits.

Double-Acting Spool Design: Allows the user to power a hydraulic cylinder in both directions (extending and retracting).

Dust Protective Caps: Outfitted with temporary red plastic plugs over the main working ports to keep dirt and aluminum shards out before final hose hookup.

Cast Iron Construction: Monoblock casting body provides immense high-tensile resistance to structural bursting under pressure spikes.
